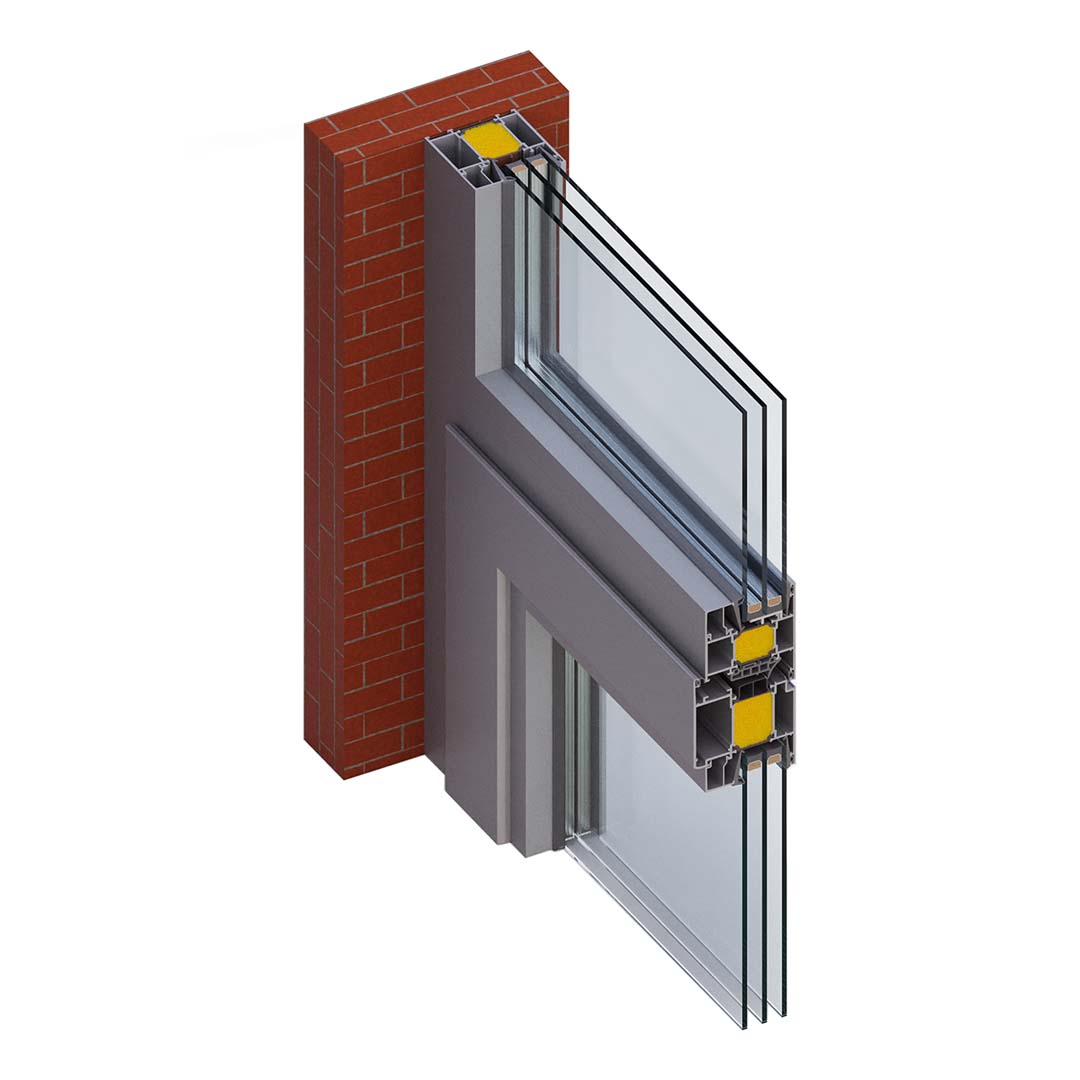

WAT 73+ Door and Window System

• Inward and outward opening doors and windows with Vent profiles of various wall thicknesses
• Single/Double opening, Tilt-and-Turn, Pivot options
• Corner-turn framing
• Self-draining frame option mountable from the interior

Polyamide Thermal Barrier Width: 34 mm

Thermal Transmittance Coefficient: 1.67 W/m²K

Maximum Vent Weight: 150 kg

Maximum Vent Dimensions:

• Max width: 1600 mm
• Max height: 2400 mm

Minimum Vent Dimensions:

• Min width: 600 mm
• Min height: 600 mm

Frame Profile Height:

• Min: 50 mm
• Max: 74 mm

Vent Profile Height:

• Min: 60 mm
• Max: 100 mm

Frame Profile Depth: 67 mm

Vent Profile Depth: 82.5 mm

Profile Thickness:

• Min: 1.5 mm
• Max: 2.0 mm

Glass Thickness: 12 mm & 42 mm

Glazing Method: EPDM Gasket

Surface Finish:

• Dual-color application for interior and exterior
• Electrostatic powder coating in all RAL colors
• Wood-textured powder coating
• Anodized finish

Opening Types: WAT73+ Opening Types

For maximum weights and dimensions in different opening types and glass combinations, please consult us.
