WA 55 Door and Window System

• Inward opening Vent and frame options in various wall thicknesses
• Single/Double opening, Tilt-and-Turn, Pivot options
• Outward opening window and door option
• Corner-turn framing

Polyamide Thermal Barrier Width: None

Maximum Vent Weight: 120 kg

Maximum Vent Dimensions:

• Max width: 1600 mm
• Max height: 2400 mm

Minimum Vent Dimensions:

• Min width: 400 mm
• Min height: 400 mm

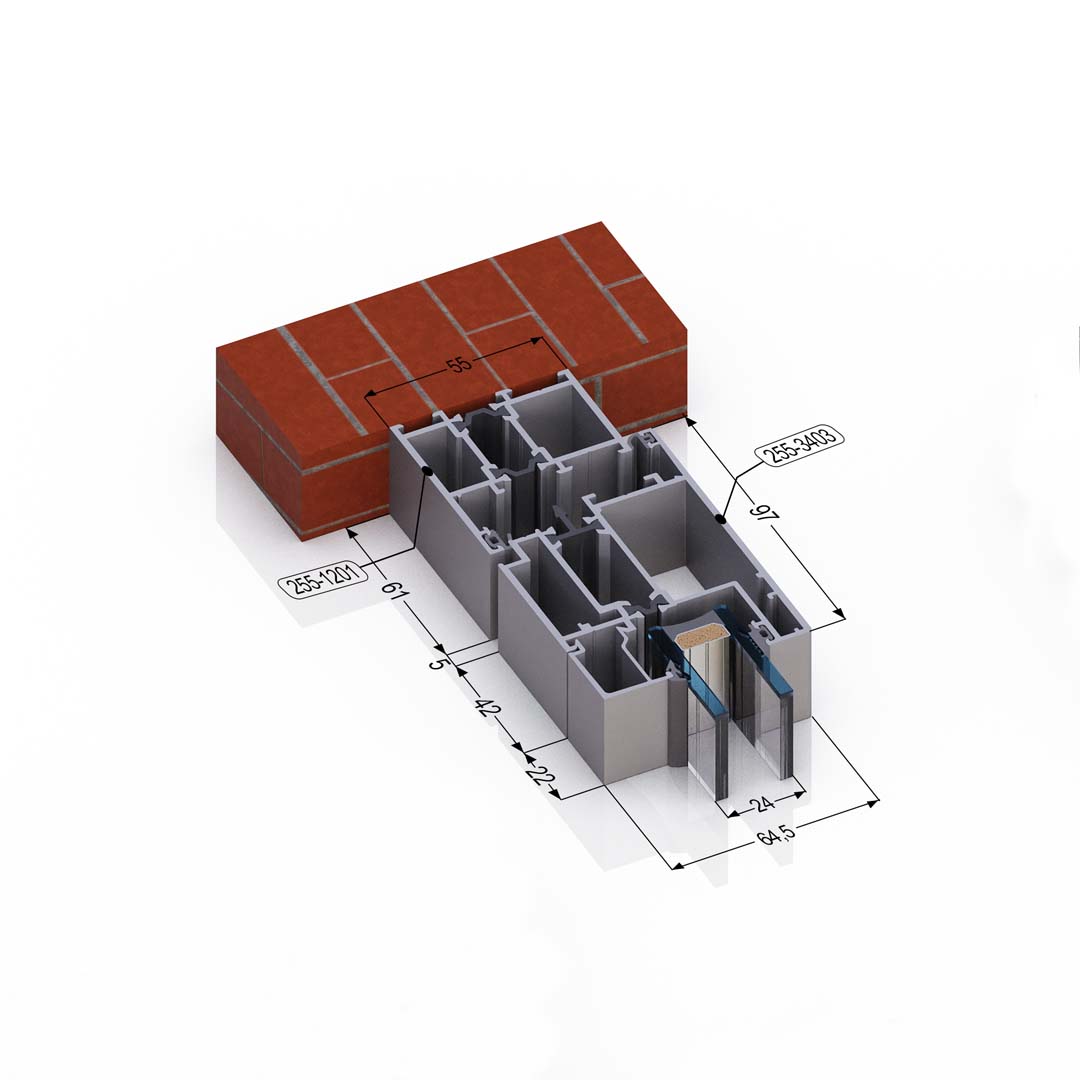

Frame Profile Height: 61 mm

Vent Profile Height:

• Min: 77.7 mm
• Max: 100 mm

Frame Profile Depth: 55 mm

Vent Profile Depth: 64.5 mm

Profile Thickness:

• Min: 1.4 mm
• Max: 1.8 mm

Glass Thickness: 4 mm & 32 mm

Glazing Method: EPDM Gasket

Surface Finish:

• Electrostatic powder coating in all RAL colors
• Wood-textured powder coating
• Anodized finish

Opening Types: WA55 Opening Types

For maximum weights and dimensions in different opening types and glass combinations, please consult us.
