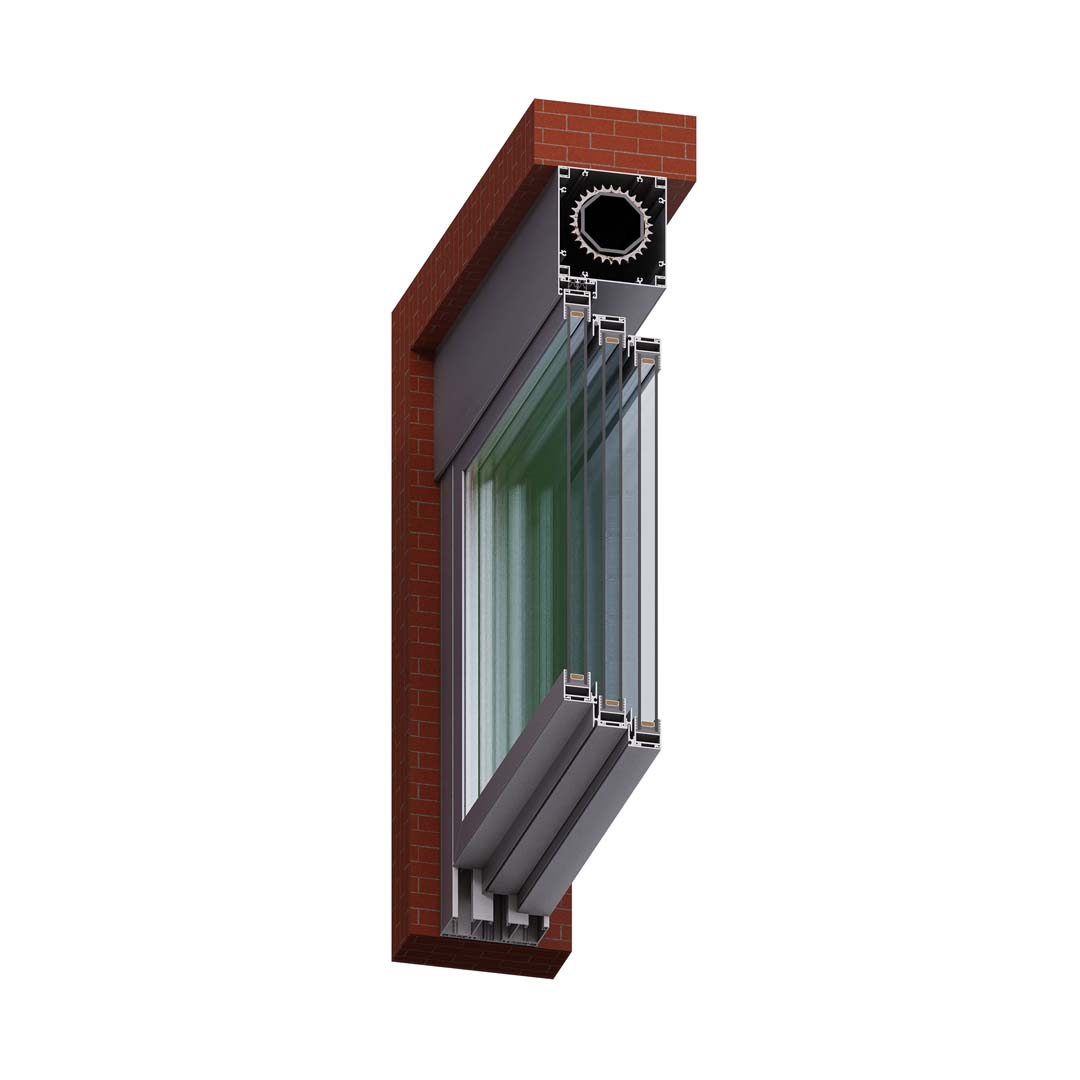

GSA 130 Motorized Vertical Sliding System
TECHNICAL INFORMATION
Opening Options:
- 2, 3, or 4-vent vertical sliding options
- 3-rail frame with an additional panel option
- Threshold-free bottom frame option
- Steel-cable trigger belt and chain options
Polyamide Thermal Barrier Width: None
Load Capacity Per Motor: 25 kg
Maximum Panel Dimensions:
- Max width: 4500 mm
- Max height: 4000 mm
Bottom Frame Dimensions:
- Depth: 127 mm
- Height: 9.8 mm

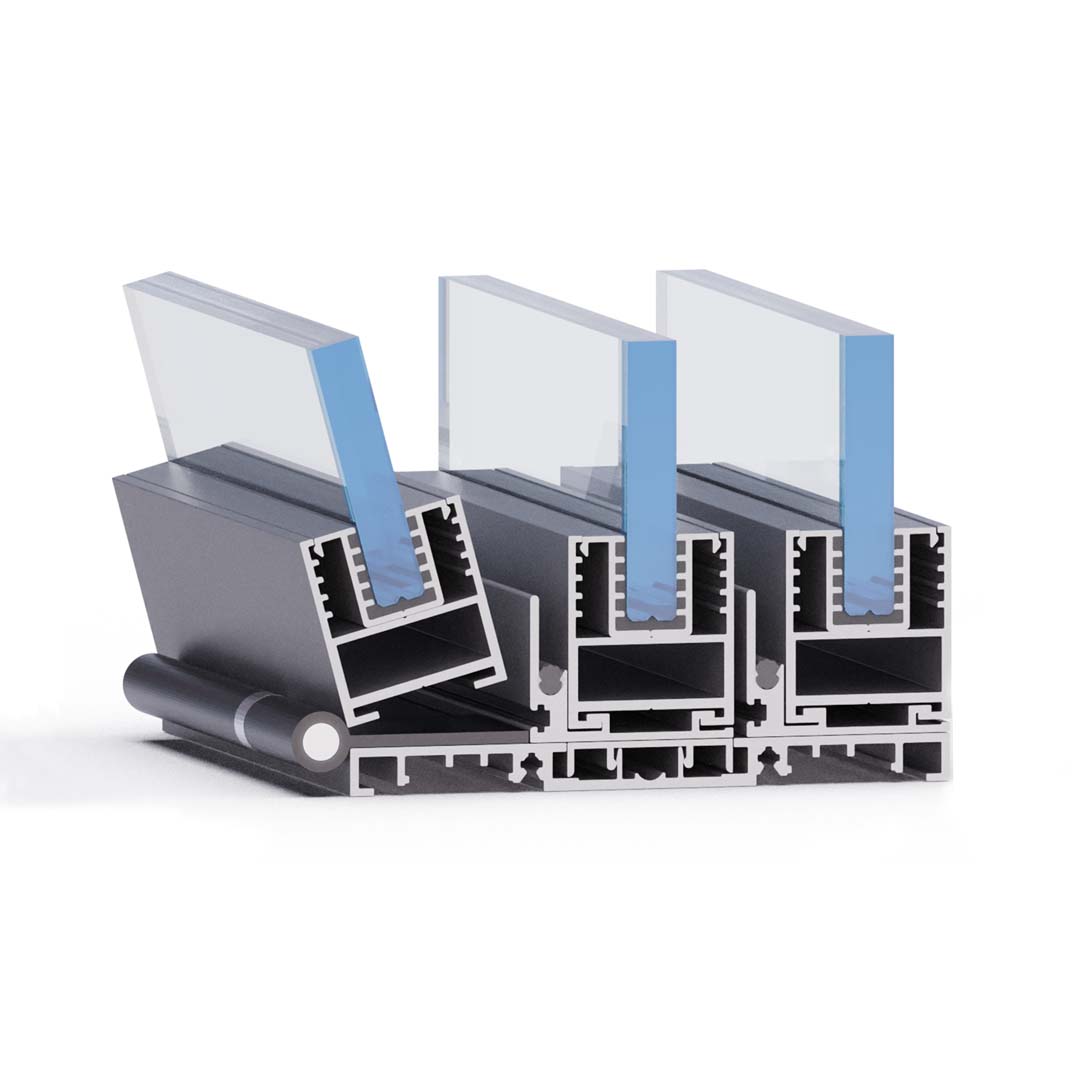

Vent Profile Dimensions:
- Depth: 35 mm
- Height: 39.5 mm
Profile Thickness:
- Min: 1.2 mm
- Max: 4 mm
Glass Thickness: 8 mm & 26 mm
Glazing Method: Silicone
Surface Finish:
- Electrostatic powder coating in all RAL colors
- Wood-textured powder coating
- Anodized finish
Opening Types: GSA 130 Opening Types
For maximum dimensions and weights in different opening types and glass combinations, please consult us.
