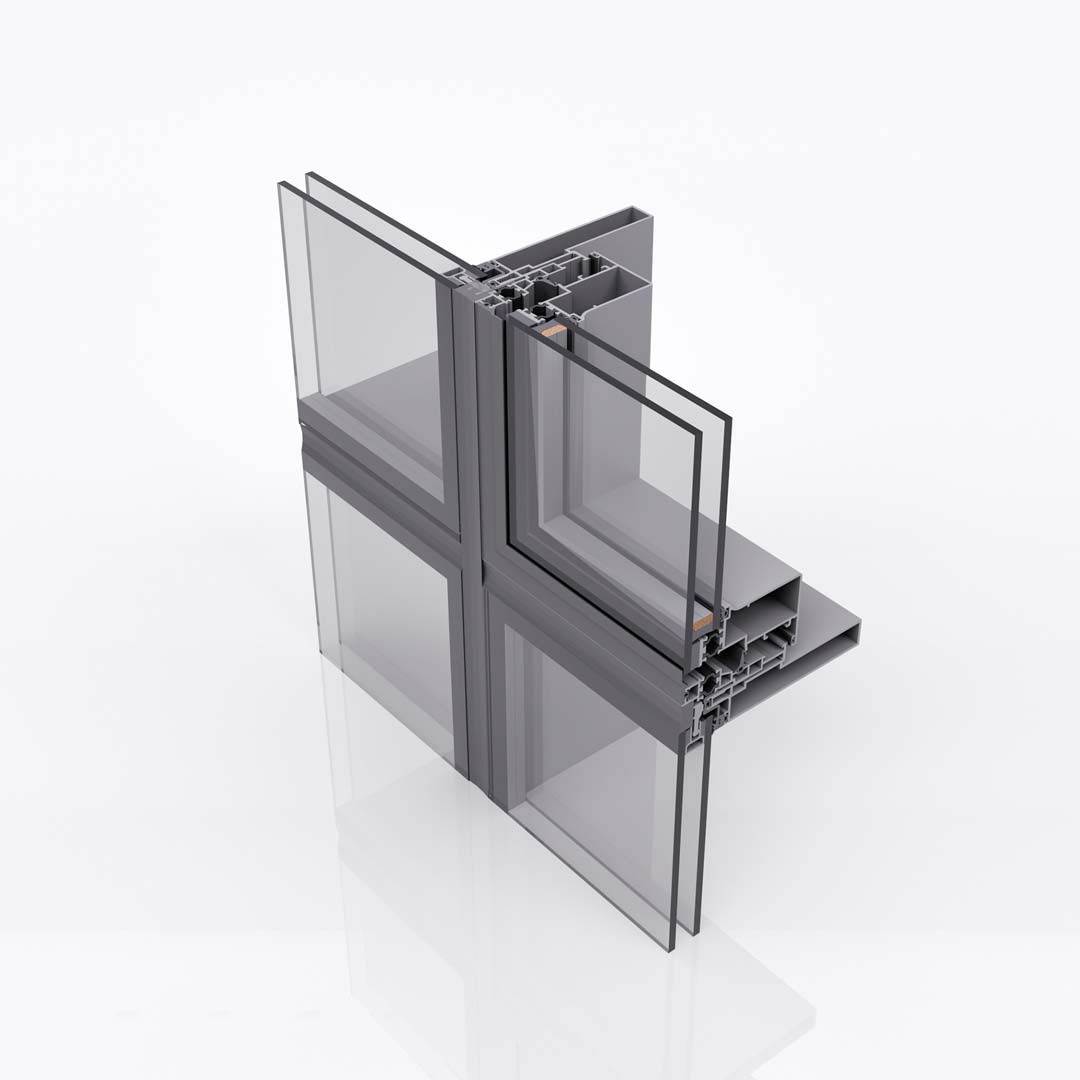

CWA 50 HV Facade System

TECHNICAL INFORMATION

Opening Options:

  • Specially designed profiles for insulated inward opening (hidden sash) with concealed frame profiles
  • Half-mullion design for a more economical and slim frame appearance
  • Manufacturing with minimal waste using the same carrier profile for horizontal and vertical sections
  • Curtain wall in capped, semi-capped, and silicone types
  • Glazing methods: 2S, 4S, 4S-U
  • Façade cap profiles in various dimensions and shapes

Polyamide Thermal Barrier Width: None

Thermal Transmittance Coefficient: 2.19 W/m²K – 3.19 W/m²K

Maximum Panel Weight: 120 kg

Maximum Panel Dimensions:

  • Max width: 1500 mm
  • Max height: 1800 mm

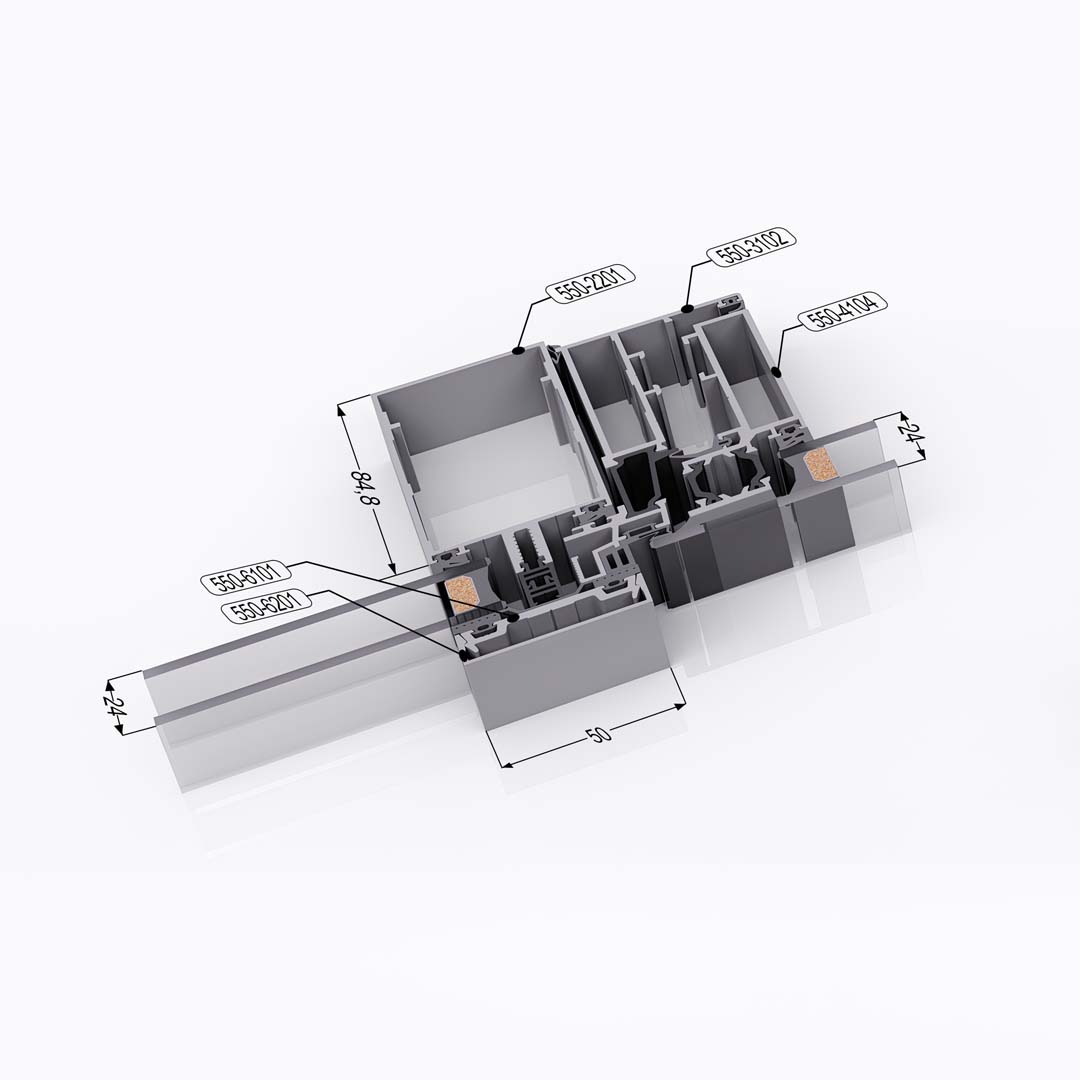

Horizontal/Vertical Profile Width: 50 mm

Horizontal/Vertical Profile Height: 60 mm – 120 mm

Mullion Profile Thickness:

  • Min: 1.8 mm
  • Max: 5.0 mm

Mullion Beak Distance: 15.7 mm

Glass Thickness: 8 mm & 40 mm

Glazing Method:

  • EPDM Gasket
  • EPDM Gasket + Silicone

Surface Finish:

  • Dual-color application for interior and exterior
  • Electrostatic powder coating in all RAL colors
  • Wood-textured powder coating
  • Anodized finish

For maximum weights and dimensions in different opening types and glass combinations, please consult us.
